Bowman Swimming Pool Heat Exchangers

Available in Cupro Nickel, Titanium and Stainless Steel, Bowman Swimming Pool Heat Exchangers are a cost and energy efficient heating solution for your swimming pool.

Easy to maintain, energy efficient and cost effective

Available in a range of materials which make them suitable for all types of pool set up, these Bowman Swimming Pool Heat Exchangers also incorporate a higher volume of heat transfer tubes than most heat exchangers so that your pool can be heated quicker and dramatically reduce fuel costs in the process!

Please note that as for all metal fittings within a pool system the water chemistry must be balanced (especially pH) to avoid chemical damage.

If you have a salt chlorination system in the pool you need to use a Titanium heat exchanger.

Easy to maintain and install

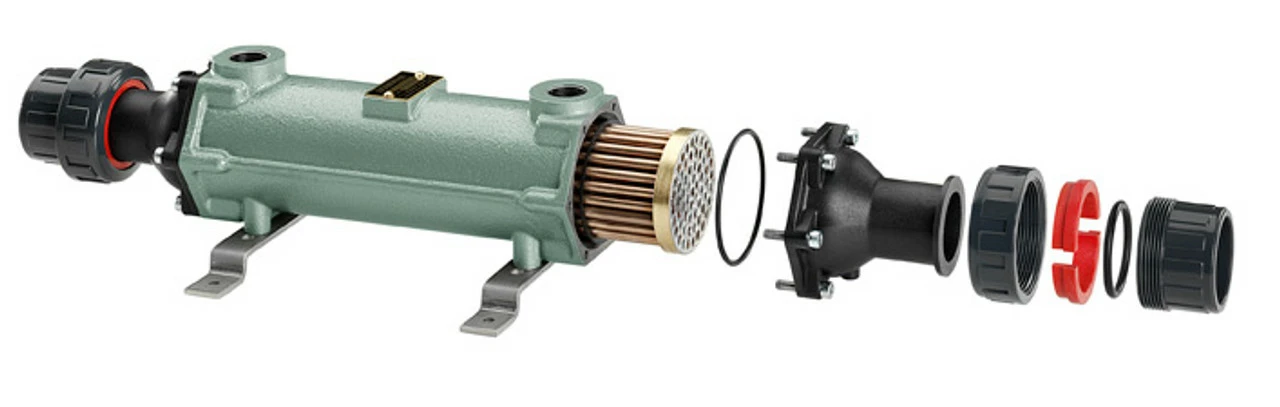

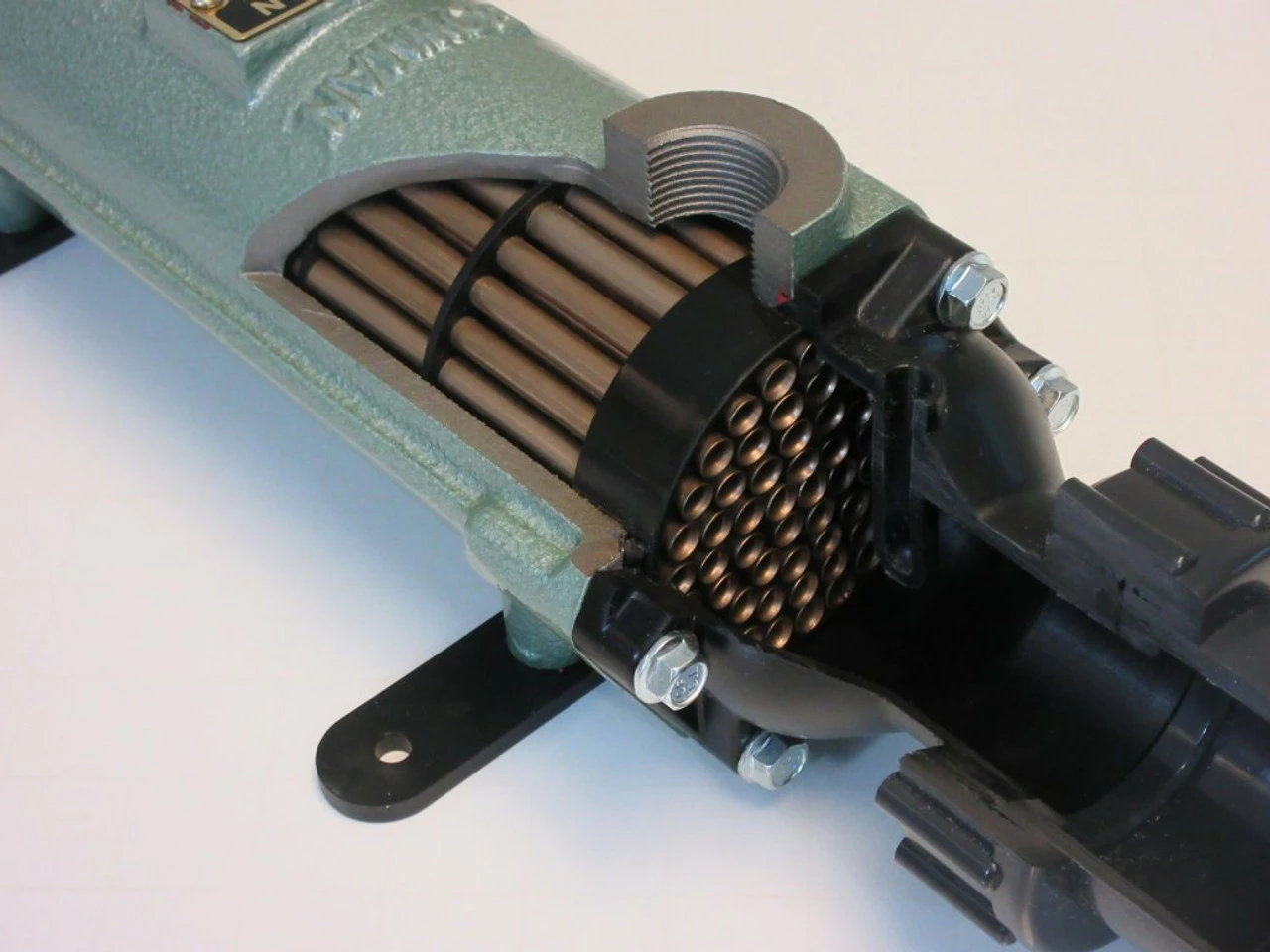

The Bowman Swimming Pool Heat Exchangers have removable end covers and tube stacks providing handy cleaning access, whilst the 5113 and 5114 units come complete with imperial and metric solvent weld adaptors for easy installation into the pipe work of your swimming pool.

Please note: The best selling of our Bowman Heat Exchangers is the Cupro Nickel 5113-3C, and we generally recommend this unit to most of our customers due to it fitting all the basic requirements of the average swimming pool. The 5113-3C is supplied with both 1.5 inch ABS pipe connectors & 50mm pipe connections.

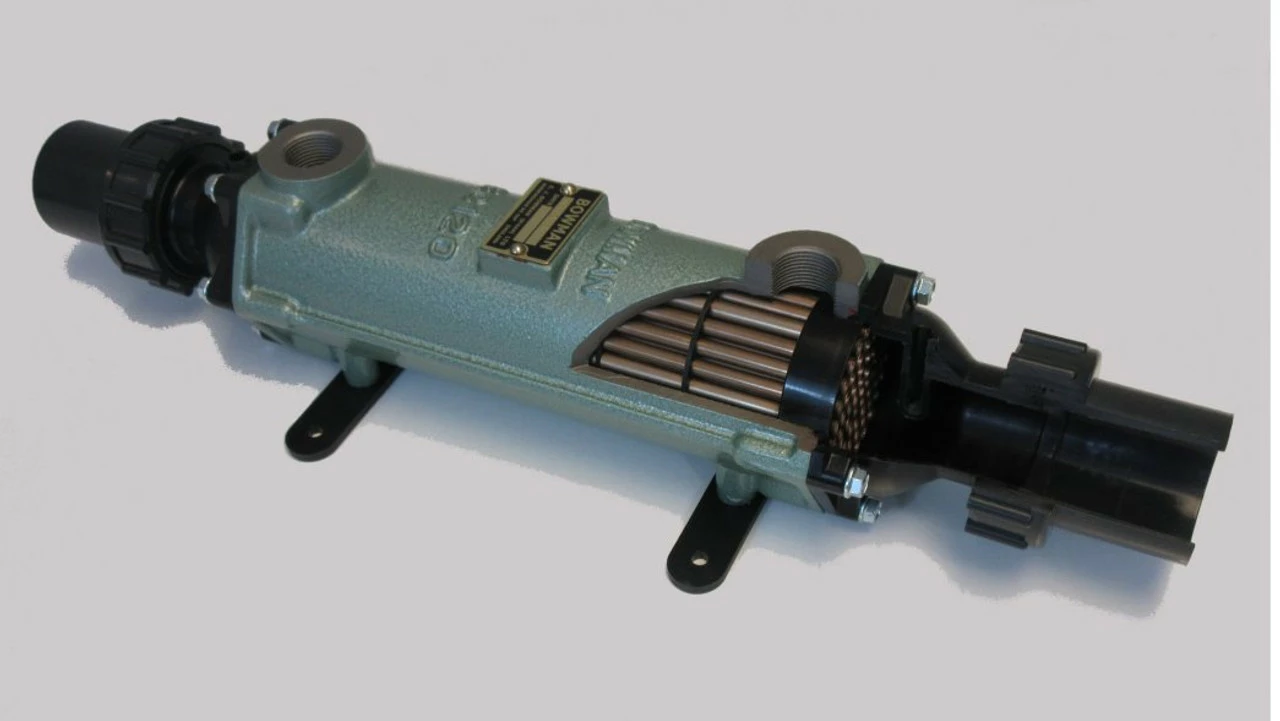

Video below shows the inside of a heat exchanger along with some handy tips

Short video taken at Spatex showing size variations



Bowman Brochure

• Heat Exchanger Brochure

Cupro Nickel Exchangers

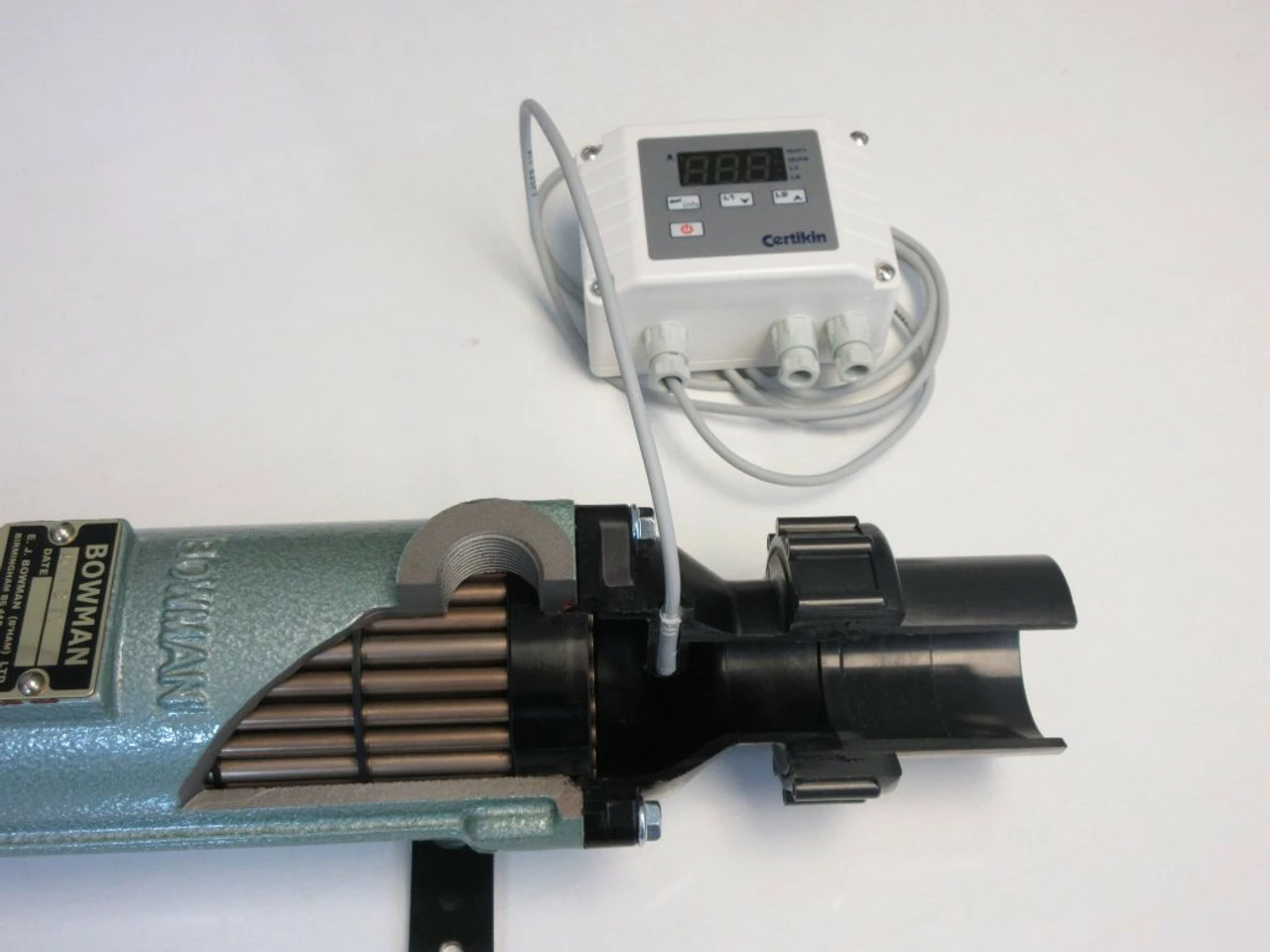

Code	kW*	Max BTU Output*	Thermostat Pocket	Cost
EC120-5113-3C 4/6 weeks	70	240,000	Yes	269
FC100-5114-2C 46 weeks	100	340,000	Yes	349
FG100-5115-2C 4/6 weeks	170	580,000	Yes	659
GL140-3708-2 4/6 weeks	300	1,000,000	No	1495
JK190-5118-3 4/6 weeks	780	2,660,000	No	4795



Stainless Steel Swimming Pool Heat Exchangers

Code	kW*	Max BTU Output*	Thermostat Pocket	Cost
EC120-5113-3S 4/6 weeks	76	260,000	Yes	329
FC100-5114-2S 4/6 weeks	108	370,000	Yes	449
FG100-5115-2S 4/6 weeks	190	650,000	Yes	849
FG160-5115-5S 4/6 weeks	300	1,000,000	No	1595



Titanium Swimming Pool Heat Exchangers

Code	kW*	Max BTU Output*	Thermostat Pocket	Cost
EC120-5113-3T 4/6 weeks	76	260,000	Yes	459
FC100-5114-2T 8-10 weeks	108	370,000	Yes	679
FG100-5115-2T 4/6 weeks	190	650,000	Yes	1295
FG160-5115-5T 4/6 weeks	300	1,000,000	No	2795



 * Based on boiler water temperature of 82 °C and pool water temperature of 30 °C
