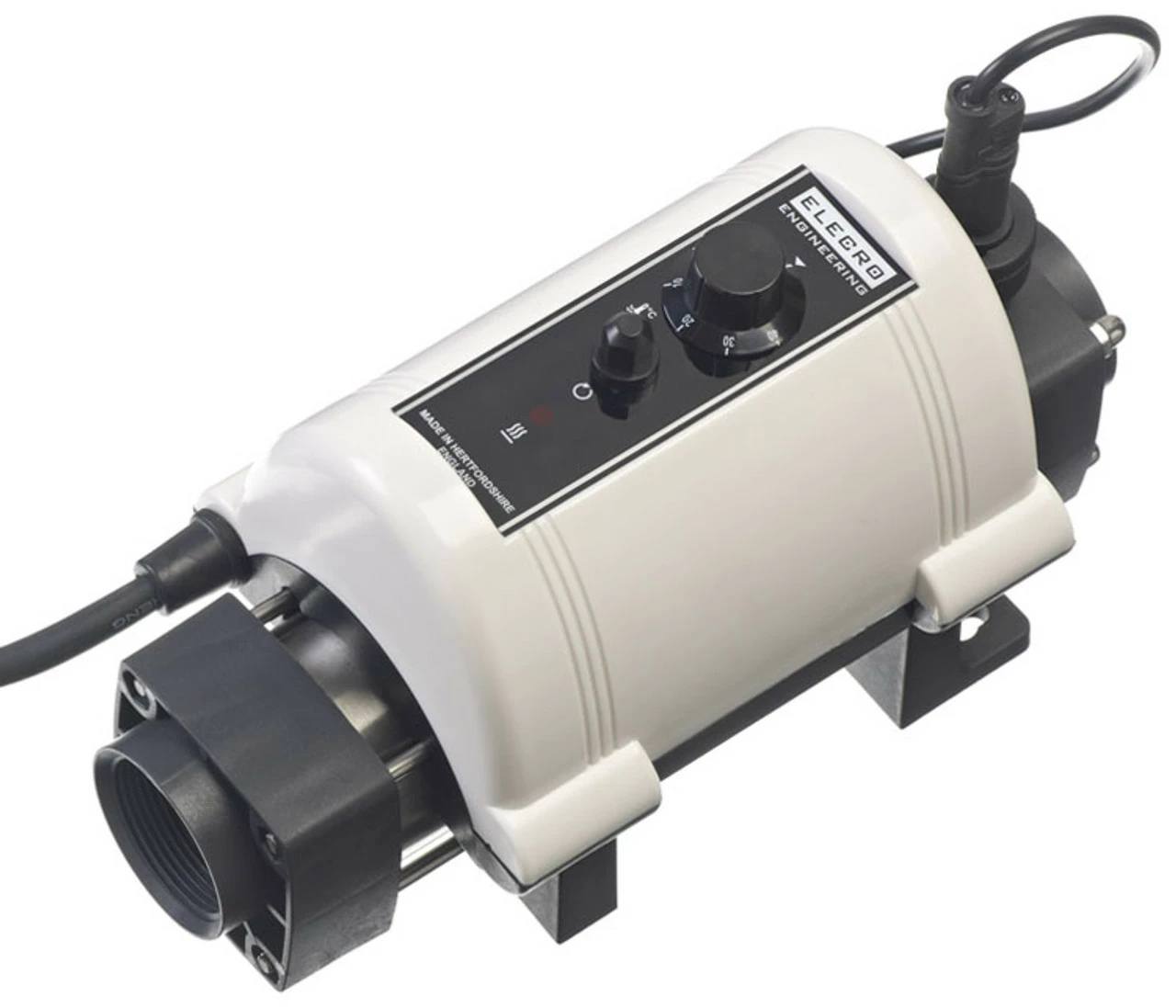

Elecro Nano Splasher Plug & Play Electric Pool Heater (Titanium)

Using materials of the highest quality and the latest innovations in technology, the Elecro Nano Splasher Plug & Play Electric Heater (Titanium) is manufactured in England and is ideal for use with above ground swimming pools.

Built for longevity and easy to install, the Elecro Nano Splasher Plug & Play Electric Pool heater (Titanium) features a reliable flow switch to shut down the heater in the event of undetected water flow and is a 3kW unit which can be plugged directly into a plug socket.

Easy to Plumb to your Swimming Pool Pipe Work

Supplied with adaptors to push fit a 1.5 inch or 1.25 inch flexible pipe, as well as a 1.5 inch BSP female thread to join on to standard pipe work of most pools, the Elecro Nano Splasher Plug & Play Electric Pool Heater (Titanium) is easy to plumb to your swimming pool. The ideal heater for Salt Swimming Pools.

Elecro Nano Splasher Plug & Play Electric Pool Heater (Titanium) features

• Robust, durable construction
• Fully equipped
• Easy to install
• Ultra-reliable flow switch allowing for safe operation as low as 1m³/hour
• Titanium 825 heating element
• 316 Stainless Steel flow tube
• Control thermostat 0-40°C (1°C differential)
• Safety thermal cut out 60°C (manual reset)
• Supplied with hose tails for connections to 1¼” or 1½” flexible pipe

Before you buy, answer these simple (might seem dumb) questions.

1. Does your pool have a pump? You can’t have a heater without one
2. Are you going to plug the heater into an extension lead?  Most people are, make sure it’s a heavy duty extension lead not some flimsy lead you might use on say an electric lawnmower for example.  Using a lightweight extension lead will result in the socket on the lead overheating and even melting causing the heater plug to overheat and become damaged as well.
3. Are you planning on using the heater on a hydrotherapy pool for animals (dogs or cats for example).  If so this voids warranty, even with filters animal hairs can damage the flow switch and other parts.
4. Do you have an Intex pool that has the threaded nut type connection, if so you’ll have a problem connecting the heater, check with you Intex pool supplier to see if they have a connection kit.

For more information see the video below

This video shows the old version which we’ve left here as a lot of the features are the same.

Please see installation guide for full details

st1:*{behavior:url(#ieooui) }

/* Style Definitions */
table.MsoNormalTable
{mso-style-name:”Table Normal”;
mso-tstyle-rowband-size:0;
mso-tstyle-colband-size:0;
mso-style-noshow:yes;
mso-style-parent:””;
mso-padding-alt:0cm 5.4pt 0cm 5.4pt;
mso-para-margin:0cm;
mso-para-margin-bottom:.0001pt;
mso-pagination:widow-orphan;
font-size:10.0pt;
font-family:”Times New Roman”;
mso-ansi-language:#0400;
mso-fareast-language:#0400;
mso-bidi-language:#0400;}

Technical Specifications:

Minimum Flow Requirement:

1m³ (1,000-litres) per hour

Maximum Flow Velocity:

17m³ (17,000-litres) per hour

Heating Element:

Titanium (WhiteEnclosure)

Flow Tube:

BS 316 Stainless Steel

Control Thermostat:

0ºC > 40ºC (1.0ºC Differential)

Safety Thermal cut-out:

55ºC (Manual reset)

Flow Switch:

Gold tipped reed switch with Titanium fulcrum pin

Wiring:

High temperature, silicone sheathed, multi-strand copper conductors

Seals:

High temperature special formula polymer

Working Pressure:

4 bar maximum

Water Connections:

1½” BSP female thread

Supplied Hosetails:

For 1½” / 1¼” flexible pipe

Mounting:

Floor or wall mountable
